***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby v8sten » Wed Mar 02, 2011 10:45 pm

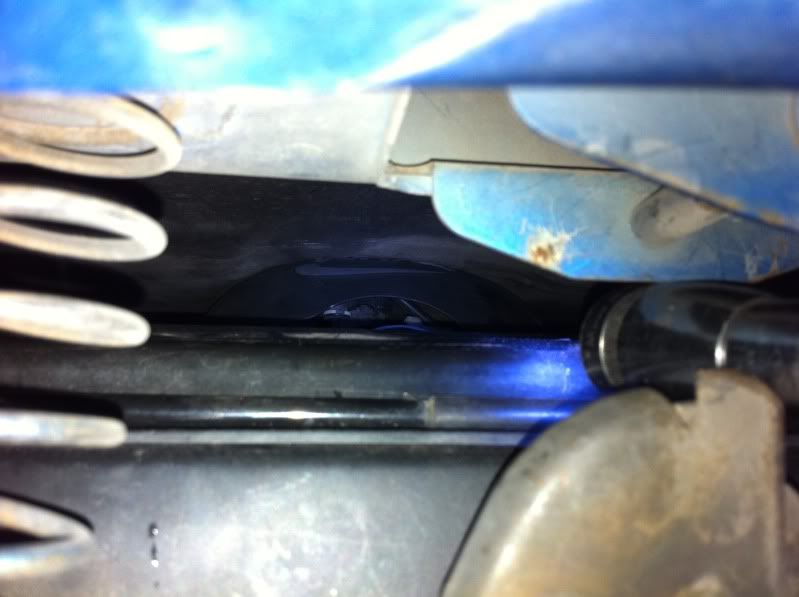

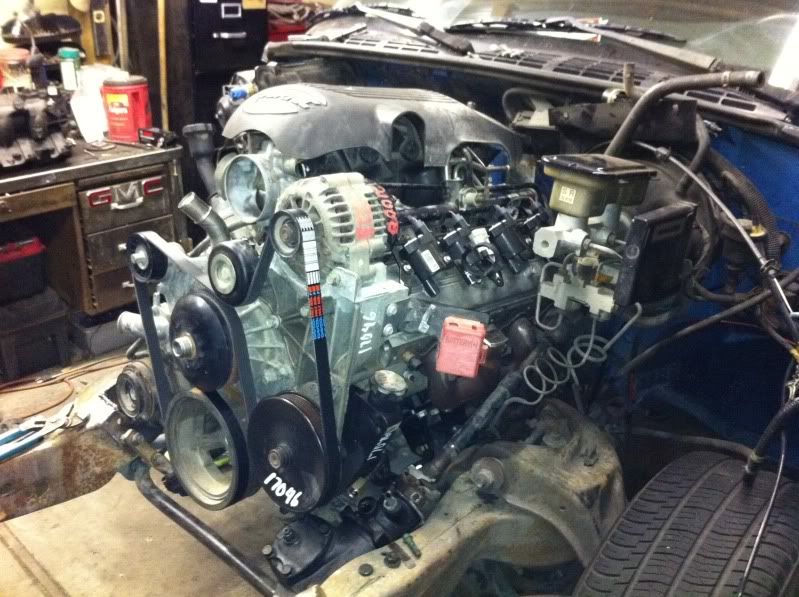

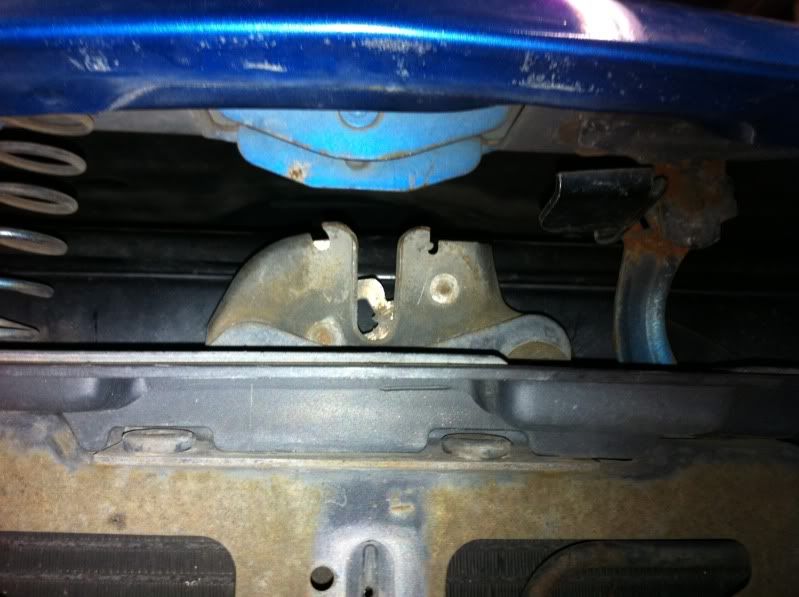

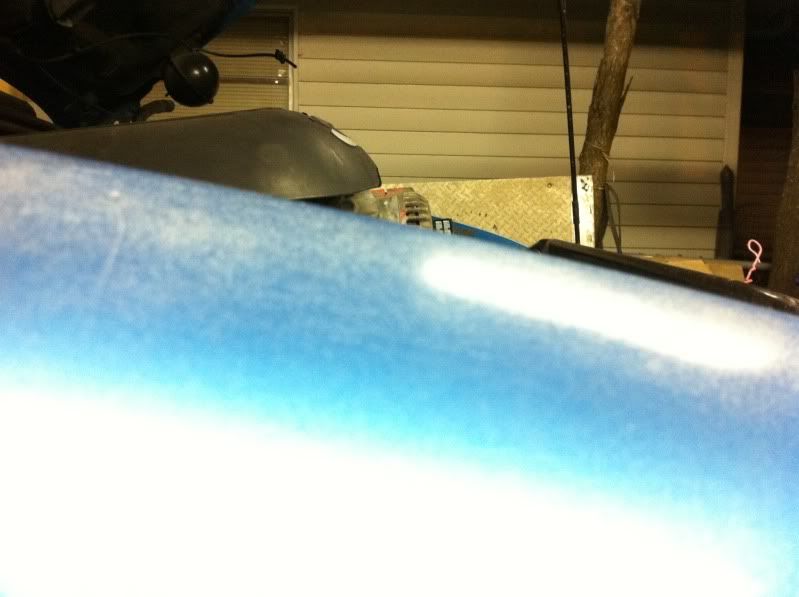

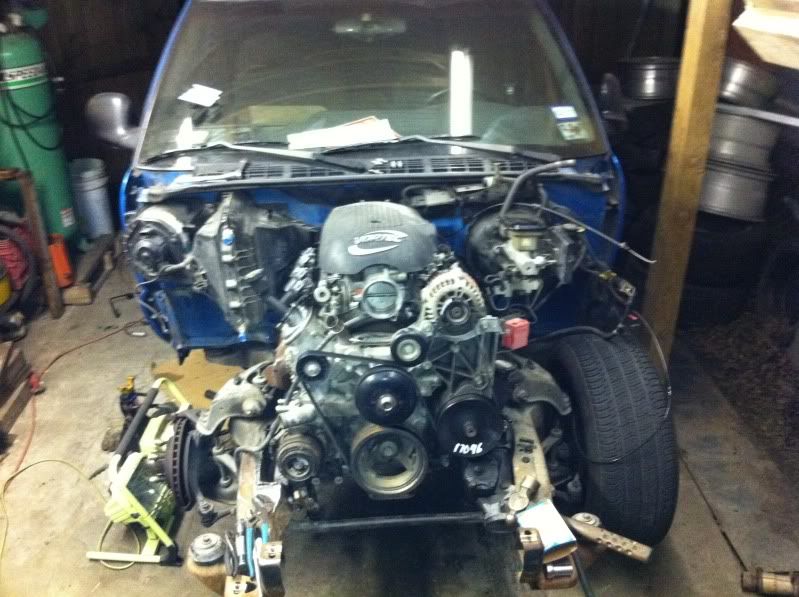

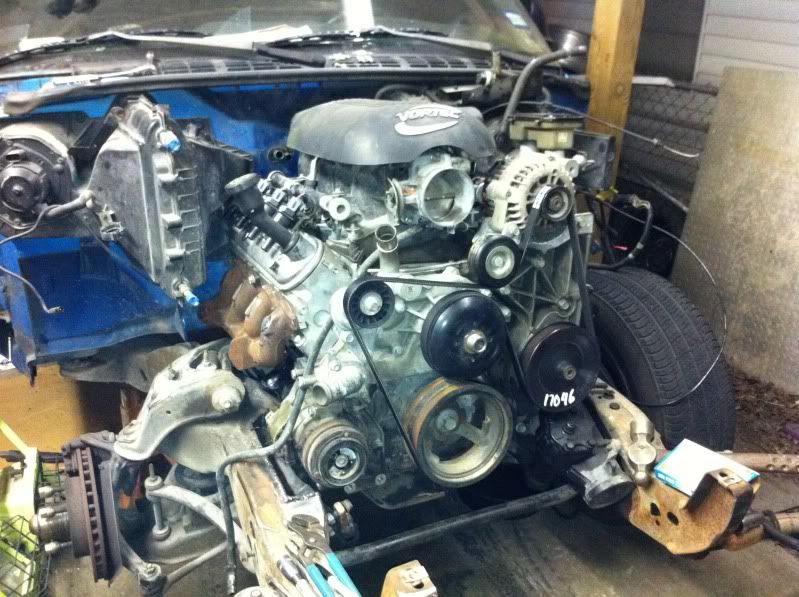

Truck manifold on pass side and 4th gen f-body manifold on drivers side. Got some hood clearance issues. More pics to come when more work is done.
1994 s10, 383, th350, ford 9"

before
after
v8sten
My hoist hit me in the head!

Posts: 258
Joined: Fri Feb 02, 2007 11:53 pm
Location: pasadena, tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby loosenut » Wed Mar 02, 2011 10:50 pm

here's to better luck with this truck. nice start to your build
"She has nice boots." -same random drunk guy @ BG

'89 s10 reg cab/short bed 2wd holley 600 dual feed conversion 350 .040 ported 906 vortecs/t56/centerforce clutch shorty hedmans, Jegs dual 3" exhaust kit
sus: 3" DJM coils Western Chassis 3" drop leafs, 1 3/4" drop blocks, '97 blazer front sway, 7.5 3.42 posi-loc 28 spline axles, 93 front end swap, paint by powerhungry
'91 Honda Accord LX 2.2/5spd 461kmiles as of 3-18-14. running Valvoline Full Synthentic
User avatar
loosenut
I oil my belts every 3000 miles

Posts: 866
Joined: Thu May 06, 2010 2:43 pm
Location: SouthEast MO

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby specv44 » Thu Mar 03, 2011 7:26 am

victor jr/elbow will make more power and allow your hood to clear.
User avatar
specv44
GM says my HHR is a truck, is it?
GM says my HHR is a truck, is it?

Posts: 6945
Joined: Thu Jul 27, 2006 8:11 pm
Location: Cocoa, FL

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby s10studduts01s » Thu Mar 03, 2011 12:33 pm

Id go with an LS6 intake before I would the Vic. Jr. but thats just me. I like for mine not to lose a ton of low end power just for some extra HPs up top. Plus I'm guessing you are wanting to be able to keep the flex fuel option. I wonder if my truck will have the same issue. I have mine put back as far as it will go.
s10studduts01s
Subscribed Member
Subscribed Member

Posts: 1687
Joined: Sun Dec 17, 2006 11:14 pm
Location: Easley,SC

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby superbee » Thu Mar 03, 2011 12:51 pm

ssubscribes
ROWING THROUGH THE GEARS! \/
http://www.youtube.com/watch?v=sP7iLypoDI4

89' S10 blazer 4wd: 355, 650 dp, rpm intake, comp 282 roller cam, modified vortecs, T56 Six speed, 8.8 ls rear, headers, x-pipe, spintech pro street mufflers, and......AC

94 sunbird- project turbochicken



-Chad
bgblock427 wrote:Blasphemy, he has a USA made howards crank. No self respecting Marine would use a communist crankshaft.
superbee
#1 A-Hole

Posts: 5479
Joined: Sun Nov 21, 2004 1:36 pm
Location: Kansas

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby lowblazin94 » Thu Mar 03, 2011 1:39 pm

Lookin good Don, if you need a hand let me know. I'll bring the beer, then you can help me with mine after this is done :thumbup:
USMC
lowblazin94
Subscribed Member
Subscribed Member

Posts: 3378
Joined: Wed Jul 20, 2005 8:16 pm
Location: Houston, Tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby 2007pontiacg5 » Thu Mar 03, 2011 5:28 pm

You don't have any experience with 4x4 s10's do you?

Any idea if the F body manifolds would clear the shock tower? If they clear the steering shaft they've got to clear the shock towers, right?
Man, I really don't want to have to make a whole new pair of headers for my swap :lol:

Great looking swap too! Nothing at all wrong with budget builds when they're done like that!
5.3 LSx into a 88 AWD converted Blazer. Can it be done?!
2007pontiacg5
I just gutted everything.

Posts: 80
Joined: Sun Nov 07, 2010 9:58 pm
Location: Lawrence, KS

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby v8sten » Thu Mar 03, 2011 7:29 pm

cant afford an intake swap now and he plans on buying a Sonoma hood later so its lookin like we are gunna cut a hole in the hood. whats up lowblazin ivve been meaning to stop buy your shop but i just don't have the time. come on over, if the red s10 is in the driveway I'm here. no i don't have any expierence with 4wd s10's sorry, one day ill build an awd s10.
1994 s10, 383, th350, ford 9"

before
after
v8sten
My hoist hit me in the head!

Posts: 258
Joined: Fri Feb 02, 2007 11:53 pm
Location: pasadena, tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby specv44 » Fri Mar 04, 2011 7:19 am

s10studduts01s wrote:Id go with an LS6 intake before I would the Vic. Jr. but thats just me. I like for mine not to lose a ton of low end power just for some extra HPs up top. Plus I'm guessing you are wanting to be able to keep the flex fuel option. I wonder if my truck will have the same issue. I have mine put back as far as it will go.


If I remember correctly, a car intake with truck accessories, points the inlet on the intake directly behind the accessories, making it a huge pita to get plumbing to the intake.
User avatar
specv44
GM says my HHR is a truck, is it?
GM says my HHR is a truck, is it?

Posts: 6945
Joined: Thu Jul 27, 2006 8:11 pm
Location: Cocoa, FL

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby s10studduts01s » Fri Mar 04, 2011 7:48 am

specv44 wrote:
s10studduts01s wrote:Id go with an LS6 intake before I would the Vic. Jr. but thats just me. I like for mine not to lose a ton of low end power just for some extra HPs up top. Plus I'm guessing you are wanting to be able to keep the flex fuel option. I wonder if my truck will have the same issue. I have mine put back as far as it will go.


If I remember correctly, a car intake with truck accessories, points the inlet on the intake directly behind the accessories, making it a huge pita to get plumbing to the intake.



Only the idler pulley gets in the way and the neck of the water pump. There is a bracket that can be bought that moves the idler pulley lower like in the picture. They are using an 07+ water pump. Some people call it the l92 water pump but from what I've gathered ALL 07+ trucks, tahoes, yukons, etc. use this water pump with the different water neck than the ones we are use to seeing.

s10studduts01s
Subscribed Member
Subscribed Member

Posts: 1687
Joined: Sun Dec 17, 2006 11:14 pm
Location: Easley,SC

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby specv44 » Fri Mar 04, 2011 8:17 am

Still more stuff to buy lol. I think we picked up our Vic Jr for like $150 used (never ran, only bolted on) :thumbup:
User avatar
specv44
GM says my HHR is a truck, is it?
GM says my HHR is a truck, is it?

Posts: 6945
Joined: Thu Jul 27, 2006 8:11 pm
Location: Cocoa, FL

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby s10studduts01s » Fri Mar 04, 2011 9:14 am

You forgot to mention the elbow, 90mm TB, aftermarket fuel rails, etc... that stuff adds up quick too. :| :wink:
s10studduts01s
Subscribed Member
Subscribed Member

Posts: 1687
Joined: Sun Dec 17, 2006 11:14 pm
Location: Easley,SC

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby v8sten » Fri Mar 04, 2011 9:21 am

thats why we are just gunna cut a hole in the hood, the edelbrock vic intake setup will come later
1994 s10, 383, th350, ford 9"

before
after
v8sten
My hoist hit me in the head!

Posts: 258
Joined: Fri Feb 02, 2007 11:53 pm
Location: pasadena, tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby Blue 305 » Sat Mar 05, 2011 8:20 am

v8sten,why did you have to cut the top of the exhaust manifold on the drivers side? I tried the truck maniold on mine,but didn't look like it would work unless it had a differant angle on the flange side.
I have Squirrells under my hood
Blue 305
Subscribed Member
Subscribed Member

Posts: 1269
Joined: Sun Aug 03, 2008 11:38 am
Location: Mount Dora,Fl

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby v8sten » Sat Mar 05, 2011 11:19 am

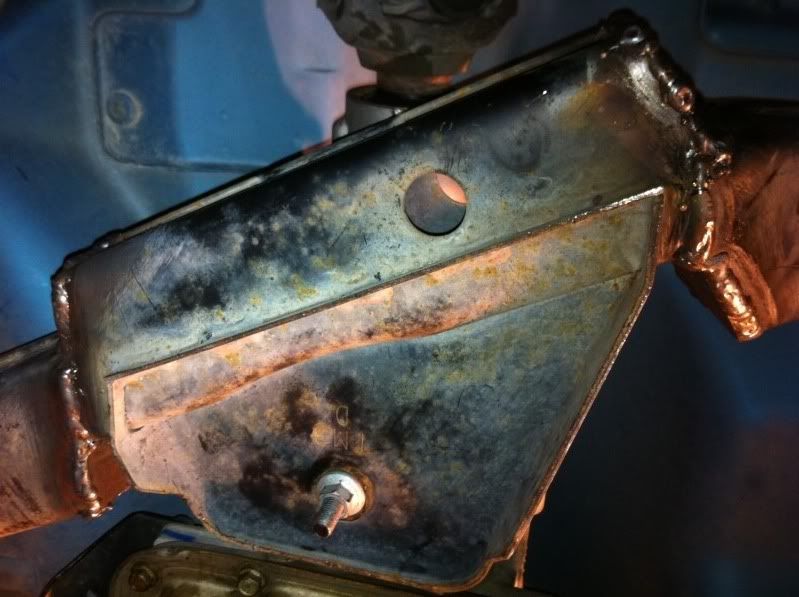

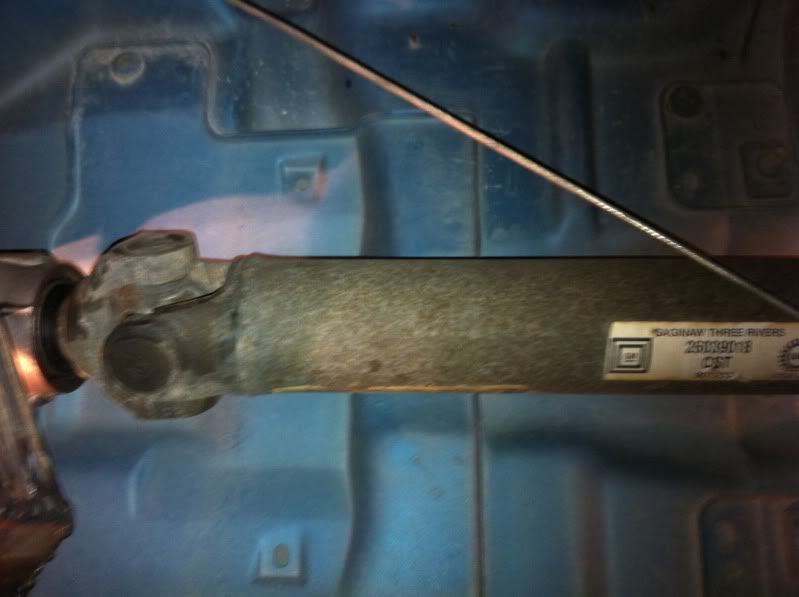

Those were the screw holes for the heat shield. The rear two had to be cut off th clear the steering shaft. On the second pipe back was the egr I just welded it shut. The drivers side is an f-body.
1994 s10, 383, th350, ford 9"

before
after
v8sten
My hoist hit me in the head!

Posts: 258
Joined: Fri Feb 02, 2007 11:53 pm
Location: pasadena, tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby Blue 305 » Sat Mar 05, 2011 7:09 pm

You said you used a truck manifold on the pass side,but I check it out on mine and it hits the frame.Did you do anything to the truck manifold?
I have Squirrells under my hood
Blue 305
Subscribed Member
Subscribed Member

Posts: 1269
Joined: Sun Aug 03, 2008 11:38 am
Location: Mount Dora,Fl

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby v8sten » Mon Mar 07, 2011 12:23 am

Blue 305 wrote:You said you used a truck manifold on the pass side,but I check it out on mine and it hits the frame.Did you do anything to the truck manifold?

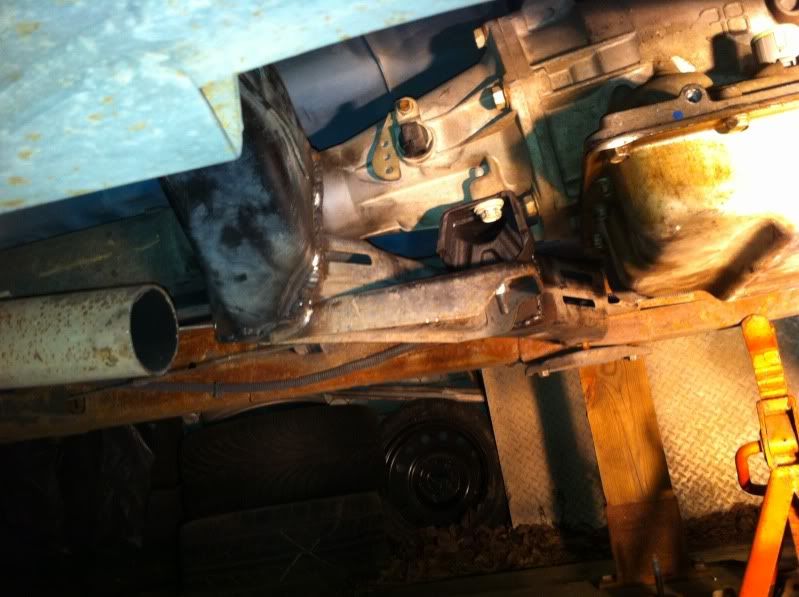

yes, i cut off the flange and welded an extension 2.5" pipe around the frame.

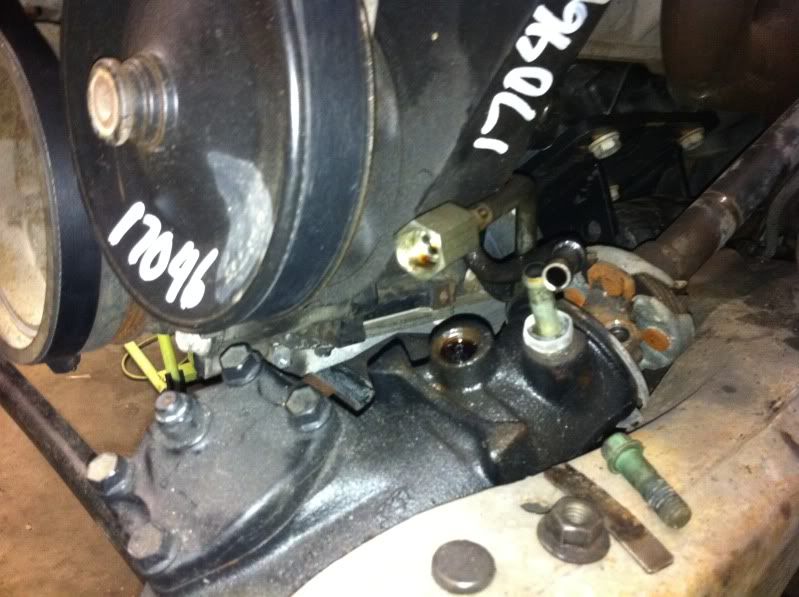

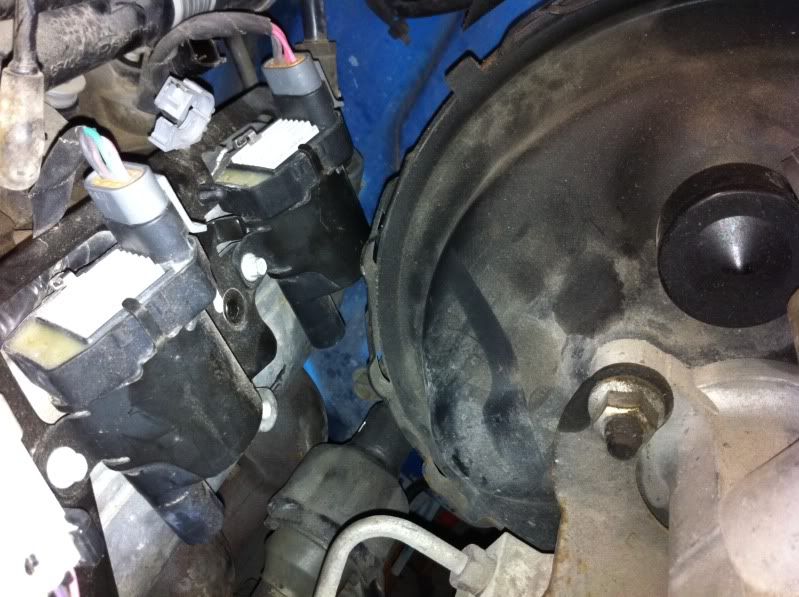

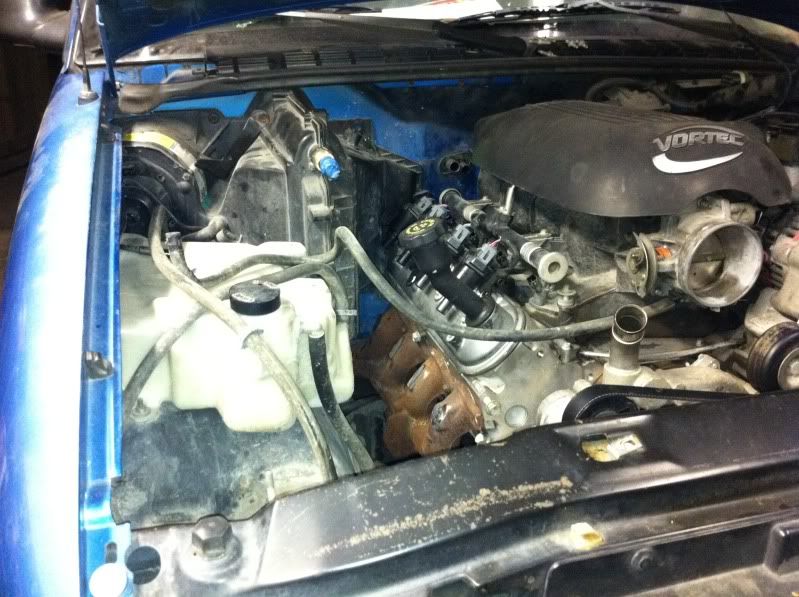

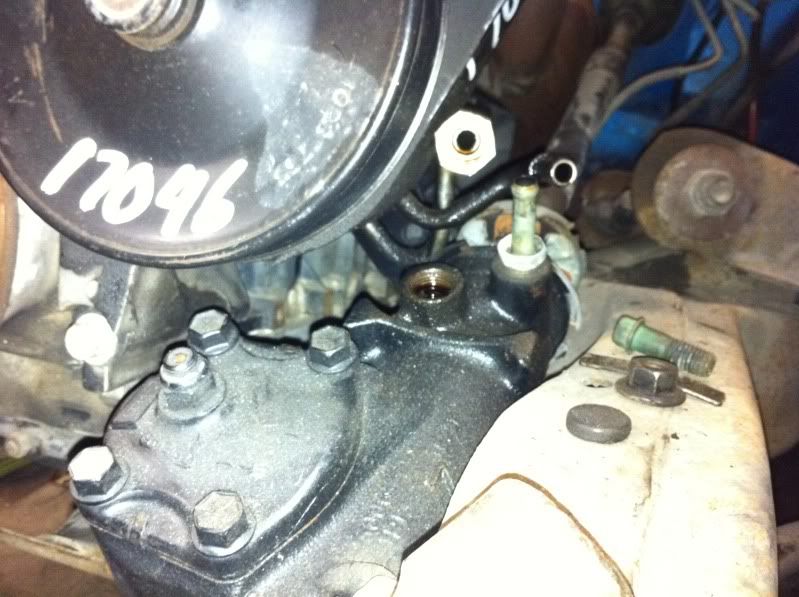

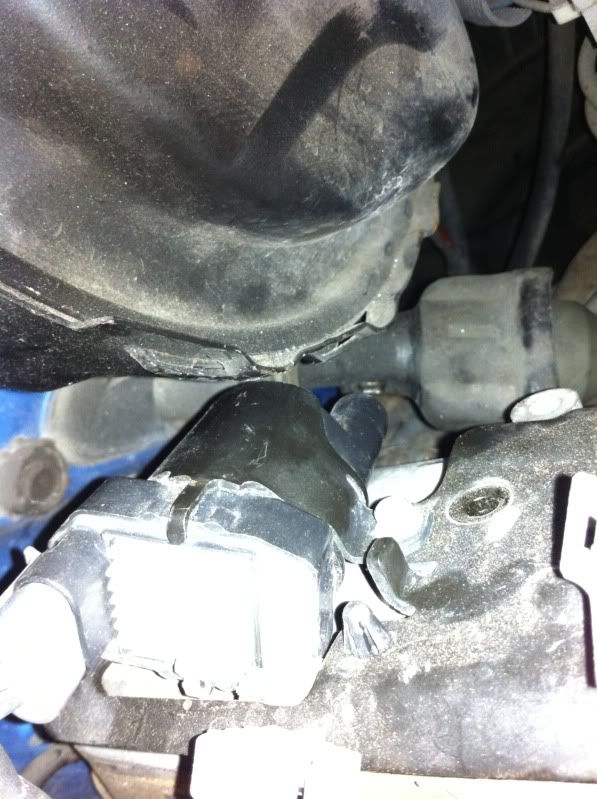

some pics I took today:

Time to start on the wiring and a little more fab work, the stock throttle cable was used off of the 4 cylinder, I just used both throttle cable brackets and made one to work. We are just getting rid of the wires that arent going to be used any more off of the factory S10 harness. If everything goes as planned the stock gauges will work, hopefully.
1994 s10, 383, th350, ford 9"

before
after
v8sten
My hoist hit me in the head!

Posts: 258
Joined: Fri Feb 02, 2007 11:53 pm
Location: pasadena, tx

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby specv44 » Mon Mar 07, 2011 7:34 am

stock gauges should work fine, you may have to install the water temp sender for the gauge in the opposite head, but same thing. oil pressure SHOULD read, it did in customized96s10's Z71 swap we did.
User avatar
specv44
GM says my HHR is a truck, is it?
GM says my HHR is a truck, is it?

Posts: 6945
Joined: Thu Jul 27, 2006 8:11 pm
Location: Cocoa, FL

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby s10studduts01s » Mon Mar 07, 2011 1:18 pm

You could have used a throttle cable off of a 01+ 4.3 s10 or blazer and it would have worked with the 5.3 cable bracket and not needed to be modified. Just a future FYI. Looking good by the way. I'm working on my wiring harness right now and am working on a way to make sure that I have enough fused power supplies to supply everything.
s10studduts01s
Subscribed Member
Subscribed Member

Posts: 1687
Joined: Sun Dec 17, 2006 11:14 pm
Location: Easley,SC

Re: ***Budget 1994 S10 L59 5.3 swap (LOTS OF PICS)***

Postby specv44 » Mon Mar 07, 2011 1:38 pm

s10studduts01s wrote:You could have used a throttle cable off of a 01+ 4.3 s10 or blazer and it would have worked with the 5.3 cable bracket and not needed to be modified. Just a future FYI. Looking good by the way. I'm working on my wiring harness right now and am working on a way to make sure that I have enough fused power supplies to supply everything.


You can go the other way too, a 2002 Silverado throttle cable will fit in the s10 pedal with no mods :thumbup:
User avatar
specv44
GM says my HHR is a truck, is it?
GM says my HHR is a truck, is it?

Posts: 6945
Joined: Thu Jul 27, 2006 8:11 pm
Location: Cocoa, FL
